Aluma-Trac liner track
Swim-crete's Aluma-Trac product line assists in a wide range of vinyl liner swimming pool construction applications.
Three profiles
Each one suits a different way of building the top of the wall.
Side by side
Which Aluma-Trac profile?
| Profile | Alignment lip | Made for |
|---|---|---|

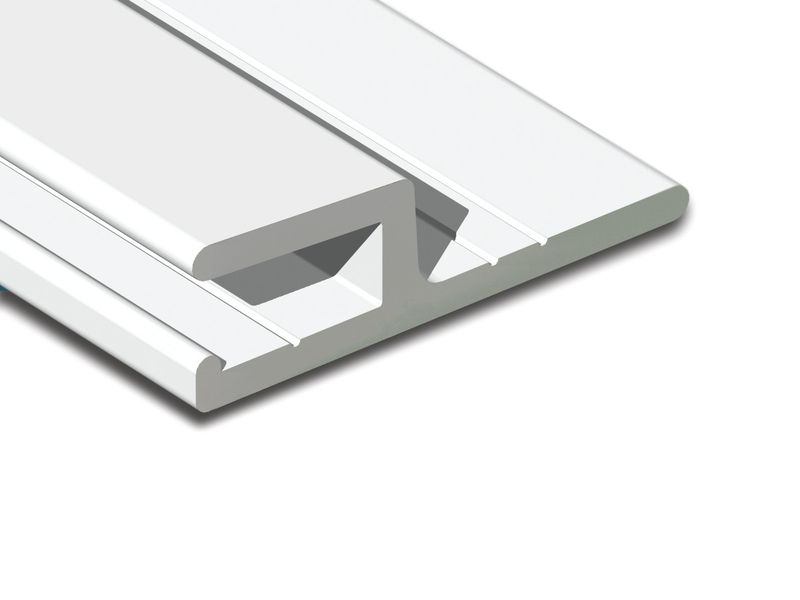

| 1 1/4 in. | None | Builders who prefer a narrower profile and do not require vertical alignment. Two areas for mounting with screws or nails. |

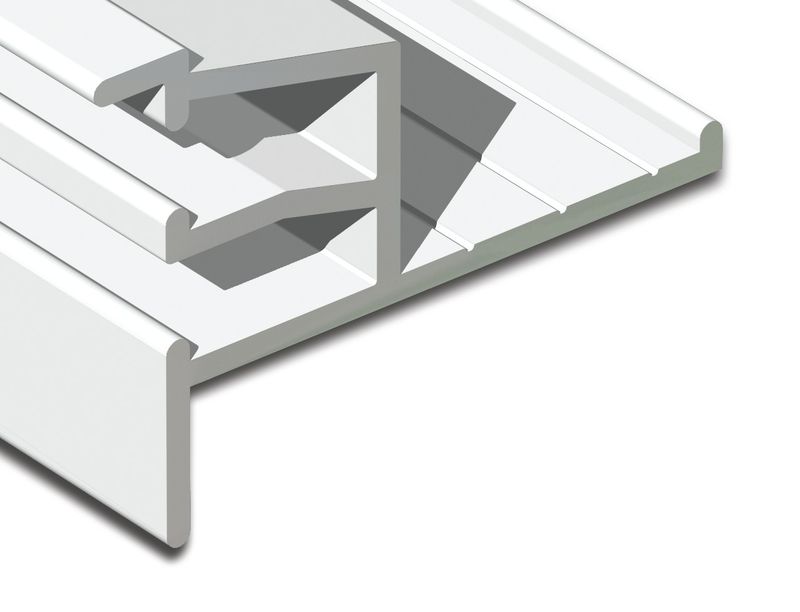

| 1 9/16 in. Double | Additional vertical lip that helps lock the pool wall into the concrete deck | Builders who prefer to install the liner before pouring the deck: the lower track takes the liner bead, the top track locks the cantilever deck forms in place. Also available notched for radius walls. |

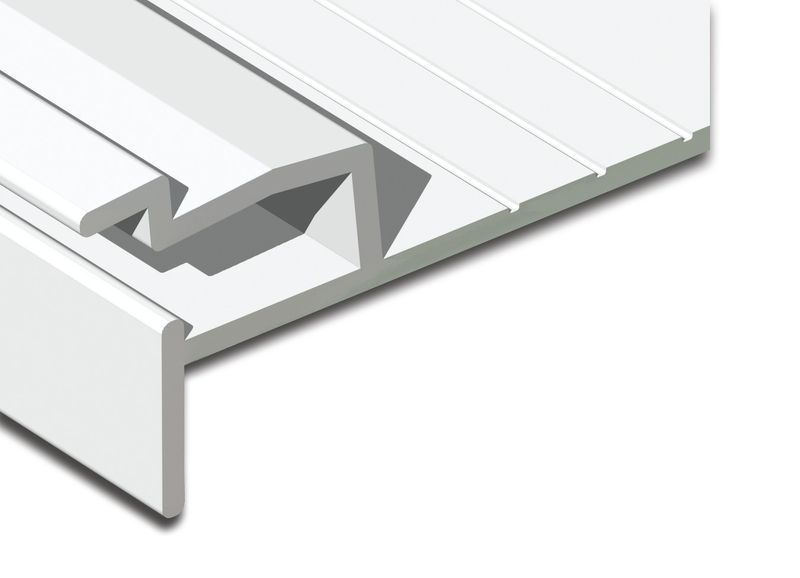

| 2 in. | Vertical alignment lip, which allows double stick tape on cantilever forms to the concrete wall | A wider flange for the nail & screw guide area. Also available notched for radius walls. |
On the wall
Select a picture to open it full size.
